Paint Dispensers

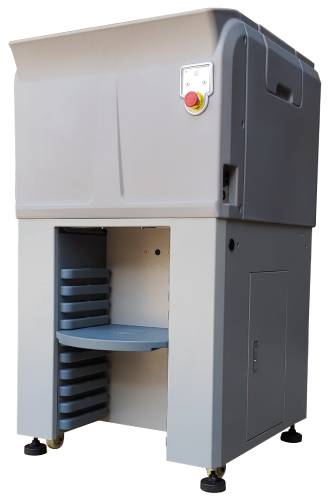

NDS-16B Automatic dispenser
This dispenser implements advanced control technologies designed and manufactured in cooperation with leading international firms. It can be interfaced to any computer via a standard RS-232 or USB connection, and the software is able to import formulas from the major formula book and color matching applications available in the market. Basic machine functions can also be performed without having the computer attached.
These machines are fully automatic, easy to use, easy to maintain and extremely safe for the user.
High precision and repeatability make these machines as the ideal equipment for the modern paint business worldwide.
A set of fully integrated accessories complement the flexible design.

NDS Features
Reliable piston pump technology
Sequential dispensing with colorant recirculation
Up to 16 canisters
Compatible with water based or universal colorants
Canister real capacity of 2 liters/quarts
2 Ounces (60 ml) stainless steel piston pumps
High dispensing precision better than 1/384 fl oz (0.077 cc)
Internal space for desktop PC
Automatic colorant mixing at programmable time
Panel controlled mixing, purge and filling
100V-270V 50/60Hz, 100W

Options
12, 14, 16 canisters configuration
Monitor stand
Function extension: spectrophotometer, label printer, color measurement software
Electronic scale (0.01 or 0.001 grams) for automatic calibration
Selection of additional software packages
USB to RS 232 adapter

Can handling
Maximum can height 380 mm
Minimum can height 50 mm
Maximum can diameter 320 mm
Integrated can detection sensor
Dimensions and shipping
Size (H, W, D) 1300 x 740x 850 mm
Weight 130 Kg (286 lb.)
Wood crate standard packaging
Shipping size (H, W, D) 1450 x 900 x 1000 mm
Shipping weight 170 Kg (378 lb.)
20′ Container can contain up to 12 units (24 units in 40′)
